Sıcak Daldırma Galvaniz Borular (Dikişsiz&Kaynaklı) / Hot Dip Galvanized Pipe

Ürün:

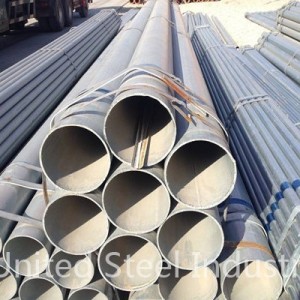

Sıcak Daldırma Galvaniz Borular (Dikişsiz ve Kaynaklı) / Hot Dip Galvanized Pipe

Uygulama Alanları: Düşük basınçlı Sıvı, Gaz ve Isıtma Boruları, İnşaat Malzemeleri, Çit Boruları, Yangın Boruları, Sera Borular, İnşaat ve Kalıp İskeleleri, Küpeşte Boruları, Elektrik Direkleri
Üretim Ölçüleri: Dış Çap/OD : 21.3 - 406.4 mm
Et Kalınlık (t): 0.5 - 20 mm
İmalat Uzunluğu (L): 0.3 - 18,00 mt, Ramdon Length, Fixed Length, SRL, DR
Kaplama:            Çinko kaplama 120-500 g/m2 (30um-70um)
Üretim Standartları: GB/T 3091 Q195/Q215/Q235/Q345
ASTM A53, BS 1387, JIS G3444 STK400/STK500,
EN 39, EN 1139 S235JR/S275JR, EN 10025, EN 10219
Çelik Sınıfları: Q195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
Q345 = S355JR / A500 Grade B Grade
Boru  Tipleri: Dikişsiz ve Kaynaklı Çelik Boru
 Boru Uçları:  Düz Uçlu, Kaynak Ağzı Açılmış, Dişli & Manşonlu, Yivli, Uç Büzme
Introduction

Benefits of galvanized pipe
Because the pipes are galvanized, it is protected from rust and corrosion. Steel rusts after interacting with water or moisture in the air over time. By adding a coating of zinc to the tubing, galvanized steel round tubing corrodes much slower, extending the life of your tubing.


In addition to this, galvanized pipe also provides:

  • Lower cost than stainless steel
  • Lowest long-term cost
  • Reliable performance
  • Excellent resistance to mechanical damage

Features:

  • Hold superior corrosion resistance strength
  • Can be installed in indoor as well as outdoor areas
  • Longer working life
  • Economical in operation
  • Uniform design
  • Available in various length, thickness and size

Galvanized steel pipe coating types

        · Hot dipped galvanized steel pipe

        · Cold galvanized pipe or electric galvanized pipe

        · Zinc coated galvanized pipe

        · Powder coated galvanized steel pipe

        · Epoxy coating galvanized pipe

        · PVC coated galvanized pipe

Standard

EN ISO 1461

Nominal diameter

1/2" - 4" inches

Nominal wall thickness

2.0 mm - 4.5mm

Test pressure index Dia

10.2 mm - 168.3 mm 3 MPa

177.8mm - 323.9 mm 5 MPa

Zinc coated galvanized pipe layer thickness

For Hot galvanized : 35μm - 650μm

For Cold galvanized: 5-15μm

Seamless galvanized carbon steel pipes    process

        · Finished pickling

        · washing

        · plating

        · drying

        · hanging plating

        · cooling

        · medicine

        · cleaning

        · grinding

        · and hot galvanized finish

Types of Galvanizing coating appearanc e

        · Shiny

        · Spangled

        · Matte grey

        · Shiny and dull

Test Reports

Laboratory testing, magnetic gauge test reports

Specification

PRODUCT

THICKNESS (MM)

LENGTH

STANDARDS

Galvanised Pipes

upto 9mm

Random Length of 4 to 7 meters unless specified otherwise

IS : 1239 [PART1] / 1990



ERW CONSTRUCTION HOT-DIPPED GALVANIZED STEEL PIPES

EXTERNAL DIAMETER

(D)

WALL THICKNESS (s) mm

WEIGHT kg/m

Φ

inches

mm

1.80

2.00

2.30

2.50

3.00

3.20

3.60

4.00

Φ21

1/2”

21.3

0.87

0.95

1.08

1.16

1.35

1.43

1.57

1.71

Φ26

3/4"

26.9

1.11

1.23

1.40

1.50

1.77

1.87

2.07

2.26

Φ33

1”

33.7

1.42

1.56

1.78

1.92

2.27

2.41

2.67

2.93

Φ42

1 1/4”

42.4

1.80

1.99

2.27

2.46

2.91

3.09

3.44

3.79

Φ48

1 1/2”

48.3

2.06

2.28

2.61

2.82

3.35

3.56

3.97

4.37

Φ60

2”

60.3

2.60

2.88

3.29

3.56

4.24

4.51

5.03

5.55

Φ76

2 1/2”

76.1

3.30

3.65

4,19

4.54

5.41

5.75

6.44

7.11

Φ88

3”

88.9

3.87

4.29

4.90

5.33

6.36

6.76

7.57

8.37

Φ114

4”

114.3

4.98

5.54

6.34

6.89

8.23

8.77

9.83

10.88

Our factory

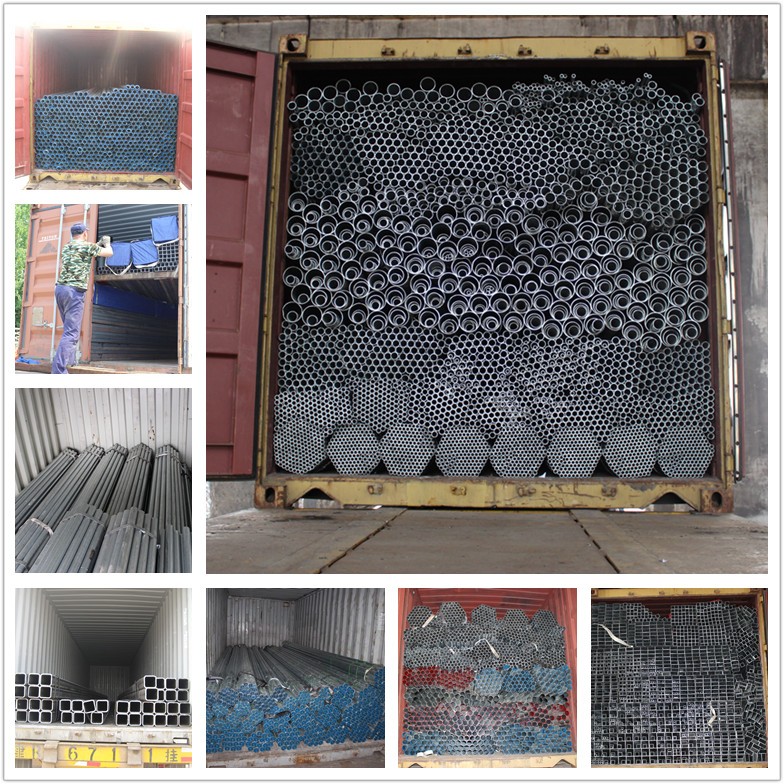

Packing
